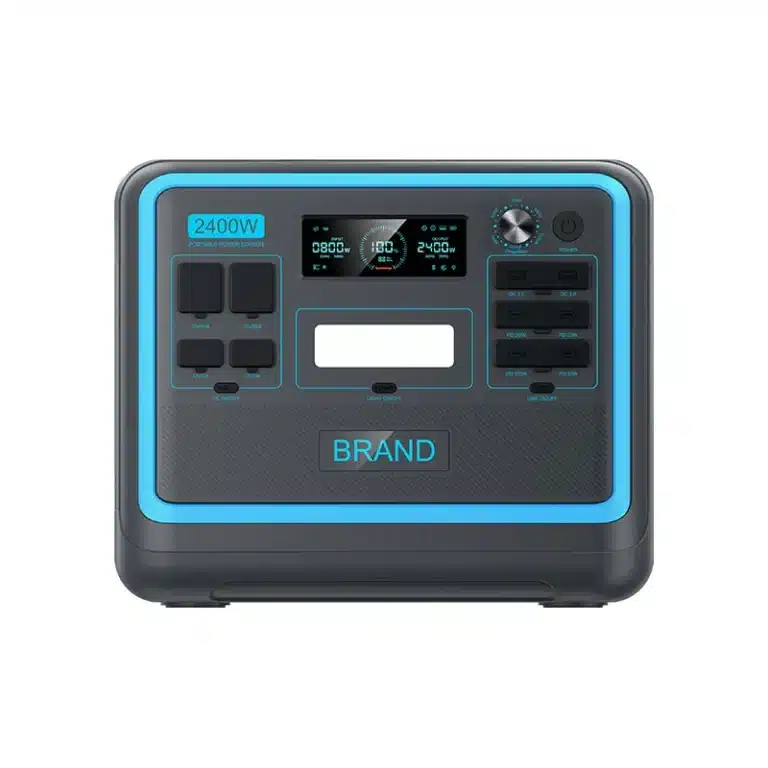

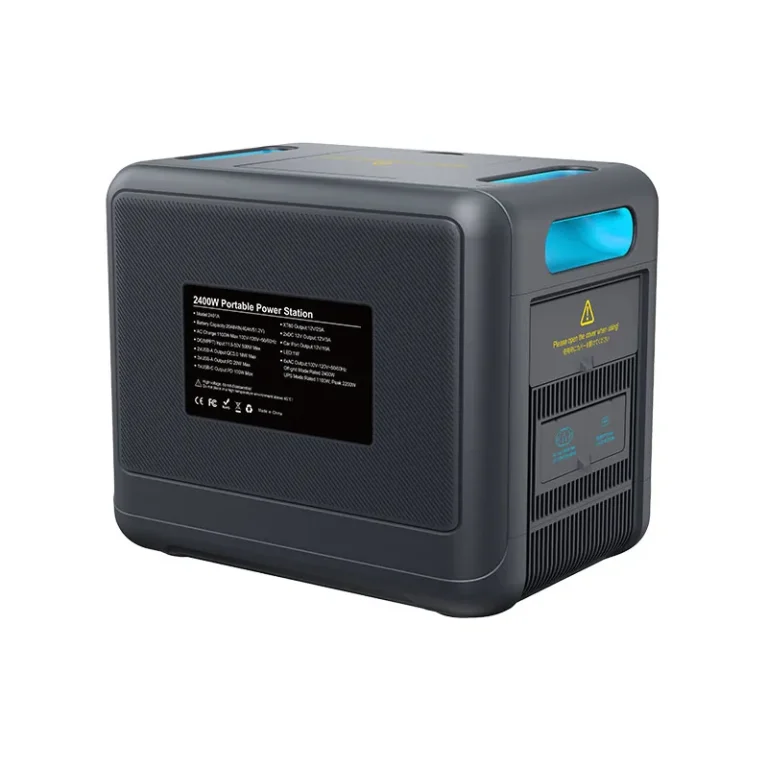

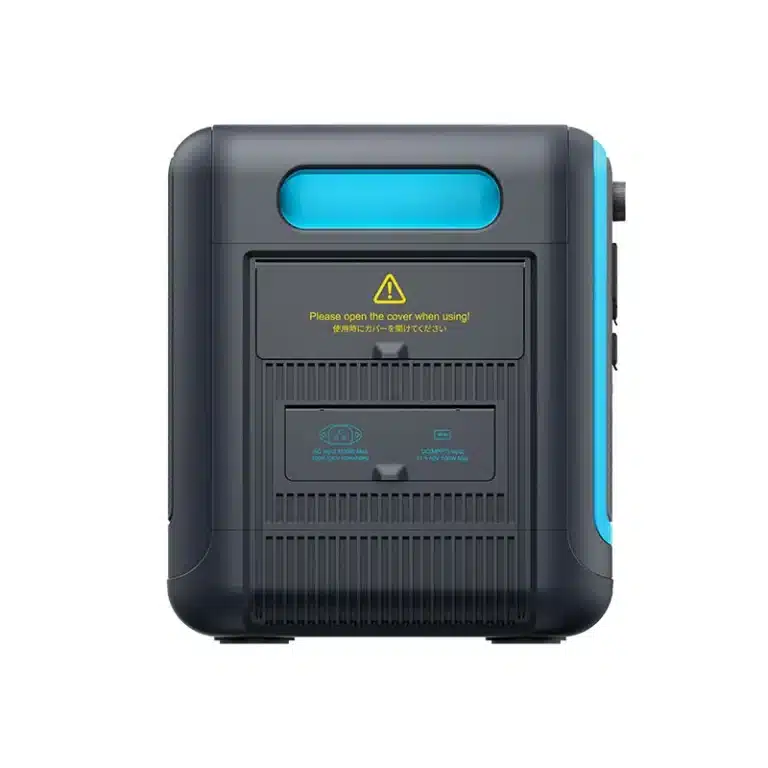

Portable Power Station 2400W

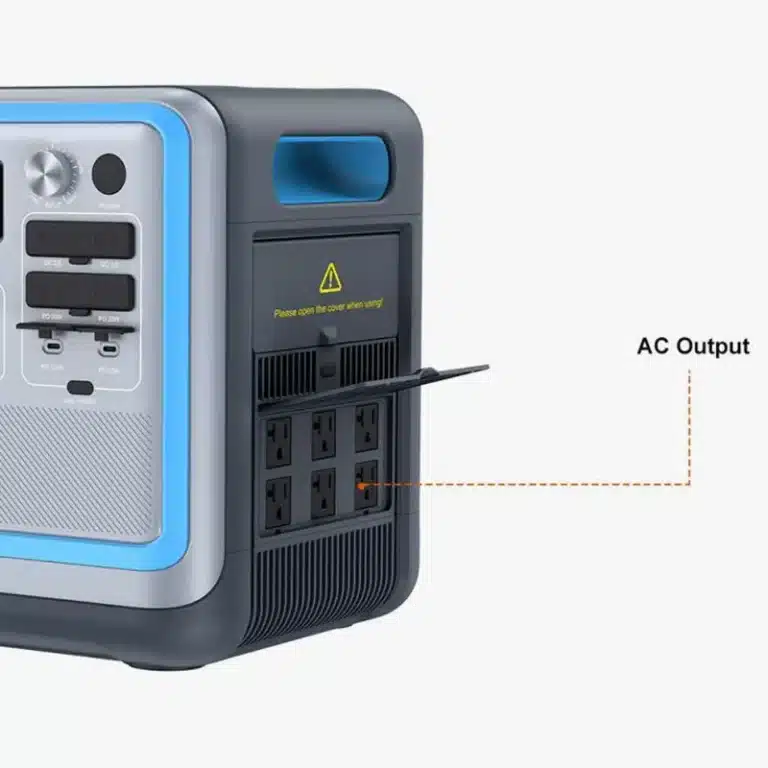

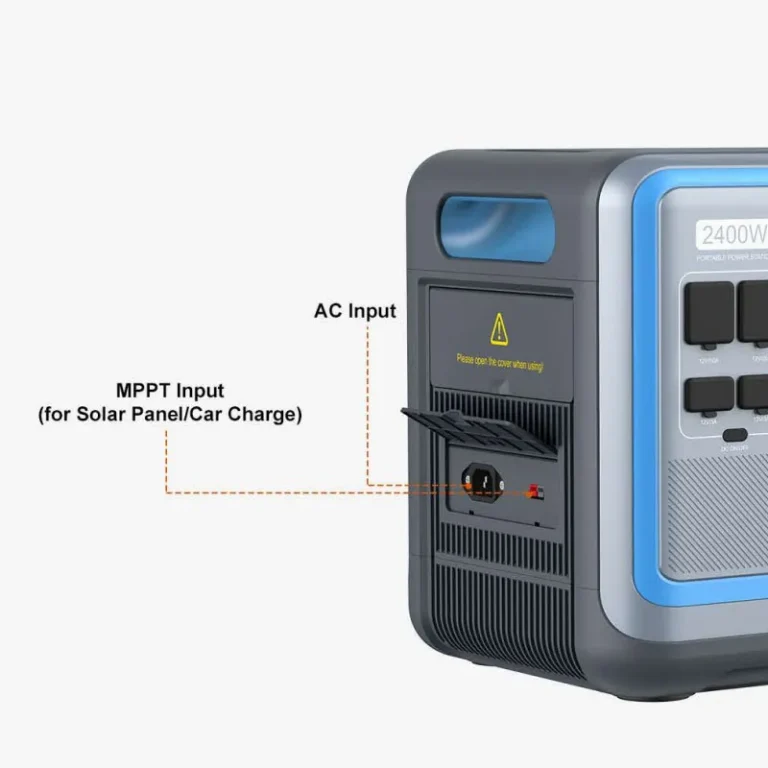

CDC-2400W is a portable energy storage power supply, suitable for home emergency backup power, outdoor travel, emergency disaster relief, field work and other applications. The product has a built-in lithium battery. The battery is designed with 16 strings and the voltage is 51.2Vdc (16*3.2V). It has an inverter AC output and outputs 230V (50/60Hz) pure sine wave. It has multiple DC output ports, input ports and USB -A and USB-C and other interfaces.
Battery pack BMS hardware design parameters
Item | Minimum value | Standard | Maximum value | Remarks |
Battery type | — | 20Ah | — | Lithium iron phosphate 40135, single cell capacity |
Rated voltage | — | 51.2V | — | 16S |
Battery capacity | — | 2048WH | — | Depends on single cell capacity |
Protection board control mode | — | — | \– | Negative control of the same port for charging and discharging |
Output short circuit protection and time | — | Support | — | When a short circuit occurs at the protection board end, the output will be turned off. After the fault is resolved, it will be activated by pressing the button or charging. |
Overcurrent protection 1 time | 1.8S | 2S | 2.2S | |
Overcurrent protection 2 time | 0.8S | 1S | 1.2S | |
Short circuit protection time | 300us | 320us | 340us | |
Overcurrent protection 1 current | 100A | 120A | 140A | |
Overcurrent protection 2 current | 125A | 145A | 165A | |
Short circuit current | 185A | 205A | 225A | |
Balanced current | 50mA | 70mA | 80mA | Single cell balanced current |
Balanced opening voltage | / | 3.200V | / | Single cell balanced opening action voltage |
Precharge time | 2S | 3S | ||
Precharge current | 2A | |||
Device over-temperature protection | 95℃ | 100℃ | 105℃ | Temperature at BMS MOS tube temperature probe |
Cell charging and overcharge protection | 3.625V | 3.650V | 3.675V | Single cell overcharge protection voltage |
Cell discharge under-voltage protection | / | 2.640V | / | single cell over-discharge protection voltage |
Charging high temperature protection | 55℃ | 58℃ | 61℃ | BMS detects the temperature. Above this temperature, the battery stops discharging. |
Charging low temperature protection | -6℃ | -3℃ | -0℃ | Stop charging when the battery temperature is too low. Low temperature charging will reduce battery capacity and life. |
Discharge high temperature protection | 60℃ | 63℃ | 66℃ | BMS detects the temperature. Above this temperature, the battery stops discharging. |
Discharge low temperature protection | -20℃ | -17℃ | -14℃ | BMS detects the temperature. If the temperature is too low, the battery will stop discharging. |
Communication interface | RS485 | |||
Protection board standby leakage current | — | — | 200uA |
Product Size
Weight | 22*KG |
Product size | L*W*H = 392*279*323mm |
